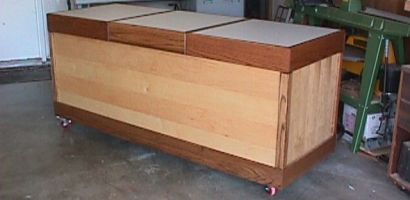

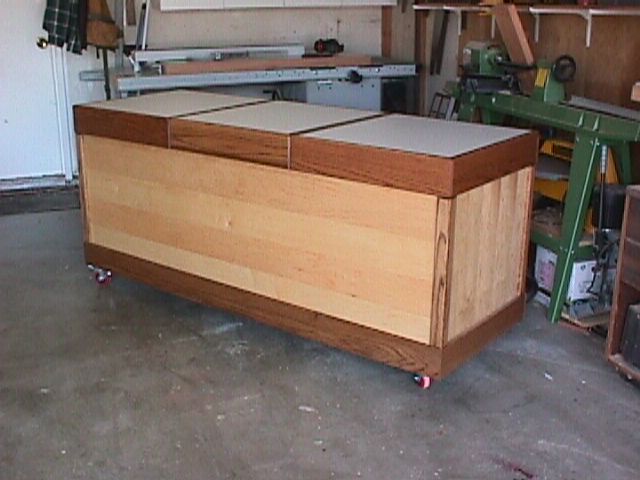

  • Power tool workbench - oak, formica, maple, and MDF.

    shop01 shop01
    shop01

    Power tool workbench - oak, formica, maple, and MDF.

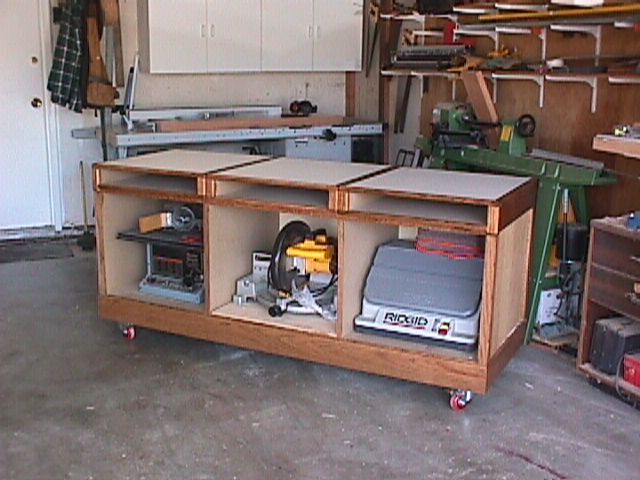

  • Front view.

    shop02 shop02
    shop02

    Front view.

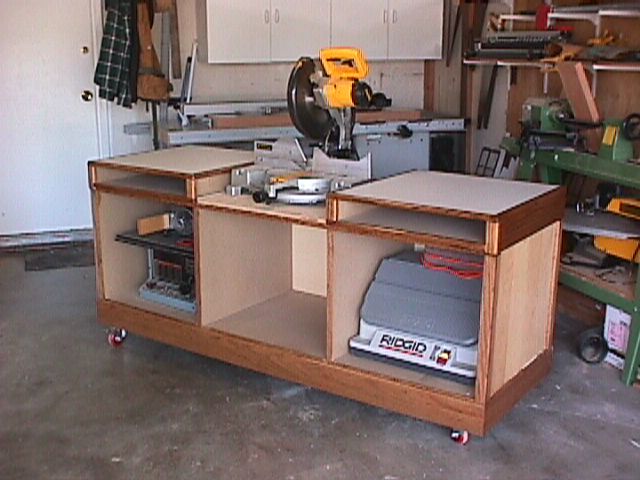

  • Center section removed so chop saw can sit flush with the top thereby providing additional support.

    shop03 shop03
    shop03

    Center section removed so chop saw can sit flush with the top thereby providing additional support.

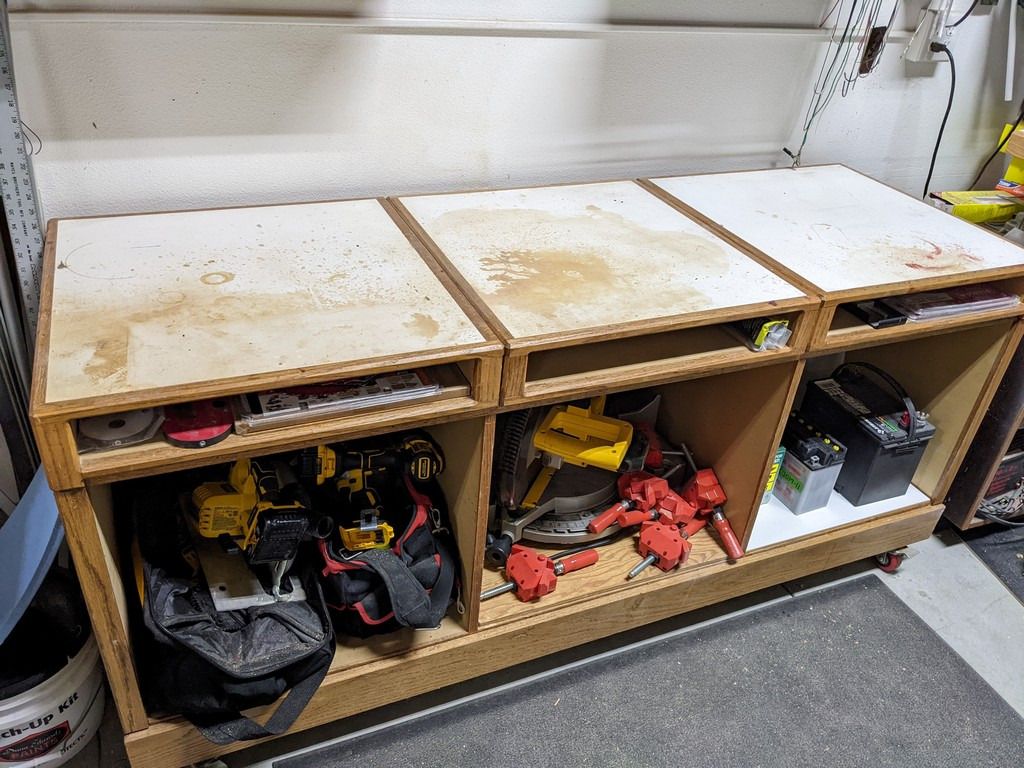

  • After about 30 years the top has taken a minor beating for work and finishes. Time for a new top.

    pxl 20220223 pxl 20220223
    pxl 20220223

    After about 30 years the top has taken a minor beating for work and finishes. Time for a new top.

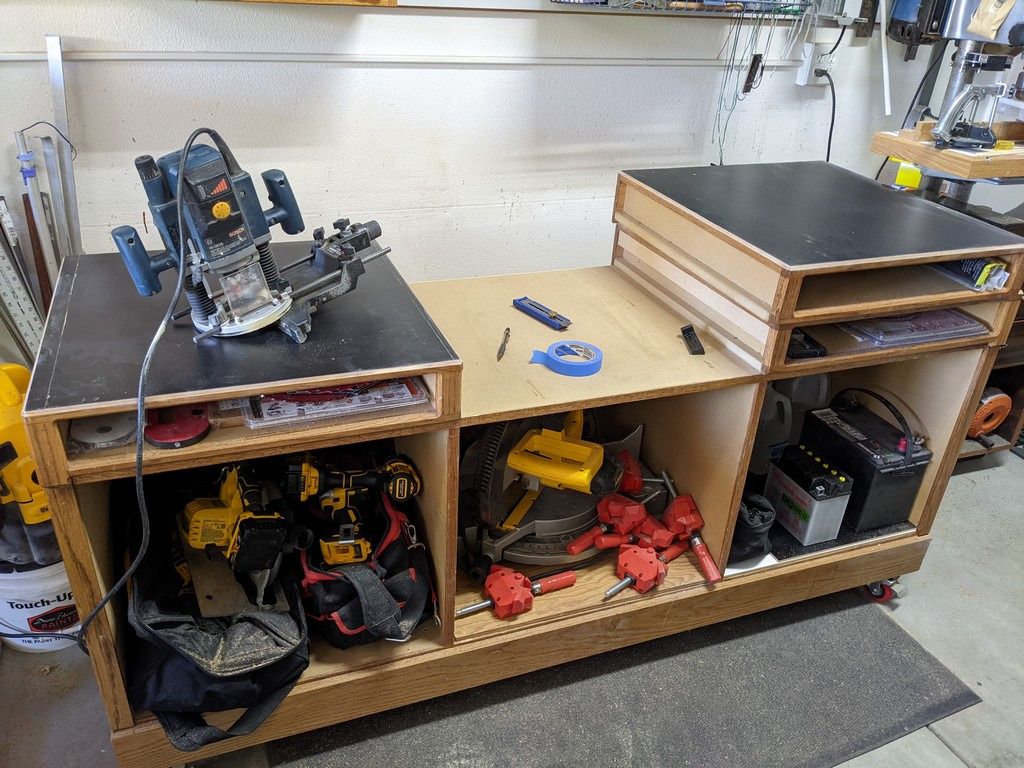

  • The white Rormica was sanded with 36 grit on a belt sander, then new black Formica was applied.

    pxl 20220225 pxl 20220225
    pxl 20220225

    The white Rormica was sanded with 36 grit on a belt sander, then new black Formica was applied.

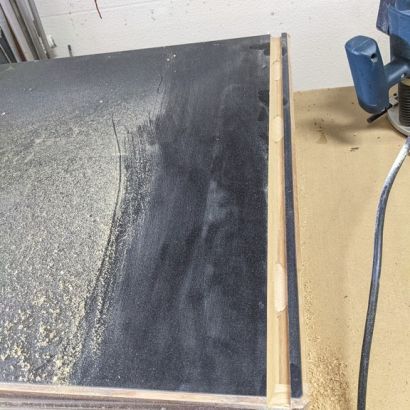

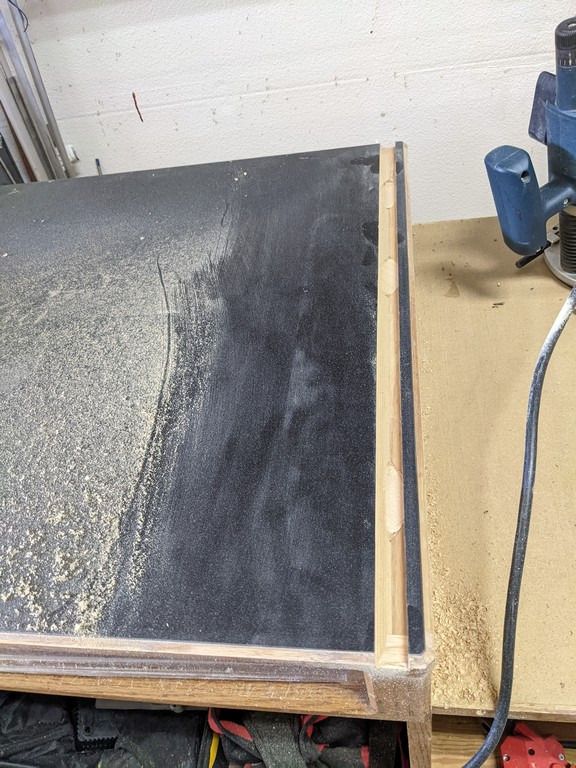

  • The sides of the two side modules were reinforced, and then groves for T-tracks were routed. Here you can see the biscuits that were used in the original construction to hold the tops to the sides.

    pxl 20220225 pxl 20220225
    pxl 20220225

    The sides of the two side modules were reinforced, and then groves for T-tracks were routed. Here you can see the biscuits that were used in the original construction to hold the tops to the sides.

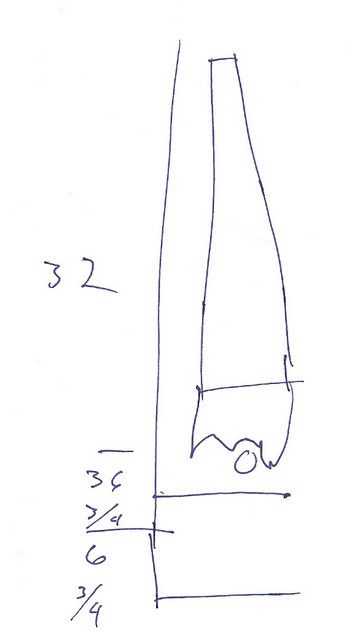

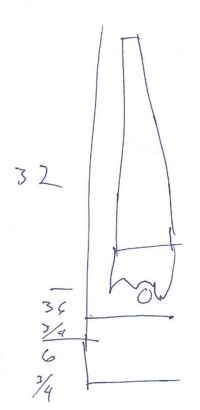

  • Sketch of saw holder for my shop.

    shop10 shop10
    shop10

    Sketch of saw holder for my shop.

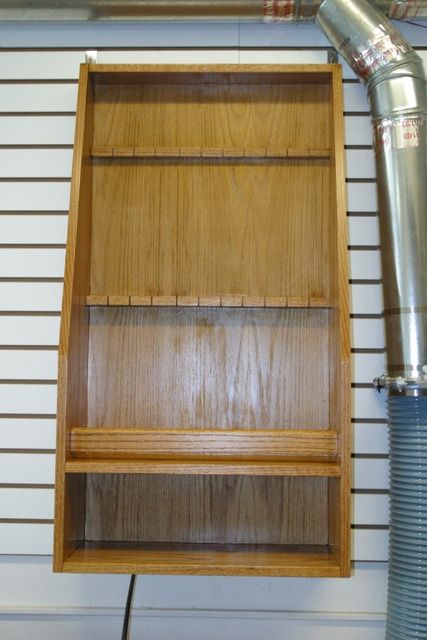

  • Completed unit.

    shop11 shop11
    shop11

    Completed unit.

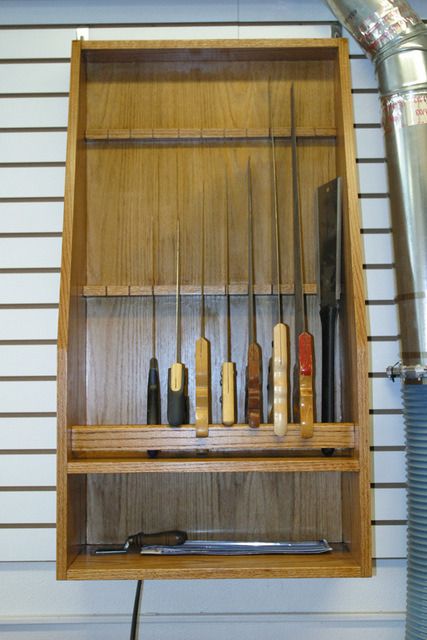

  • Completed unit.

    shop12 shop12
    shop12

    Completed unit.

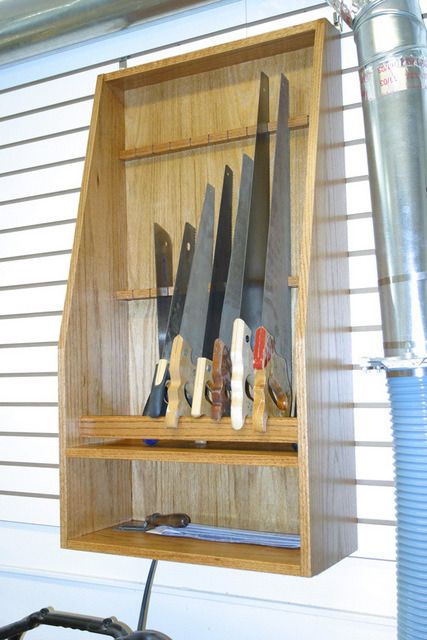

  • Three-quarter view of completed unit.

    shop13 shop13
    shop13

    Three-quarter view of completed unit.
